Thicknesses of parts are as ordered, max 8000 mm

Inner or outer corner 90 degrees
For special order, also bending angles at other degrees are available

These are used in pitched eaves soffit, for jointing with outer fastening with a bolt-washer piece. Available 120, 90 and 45-degrees.

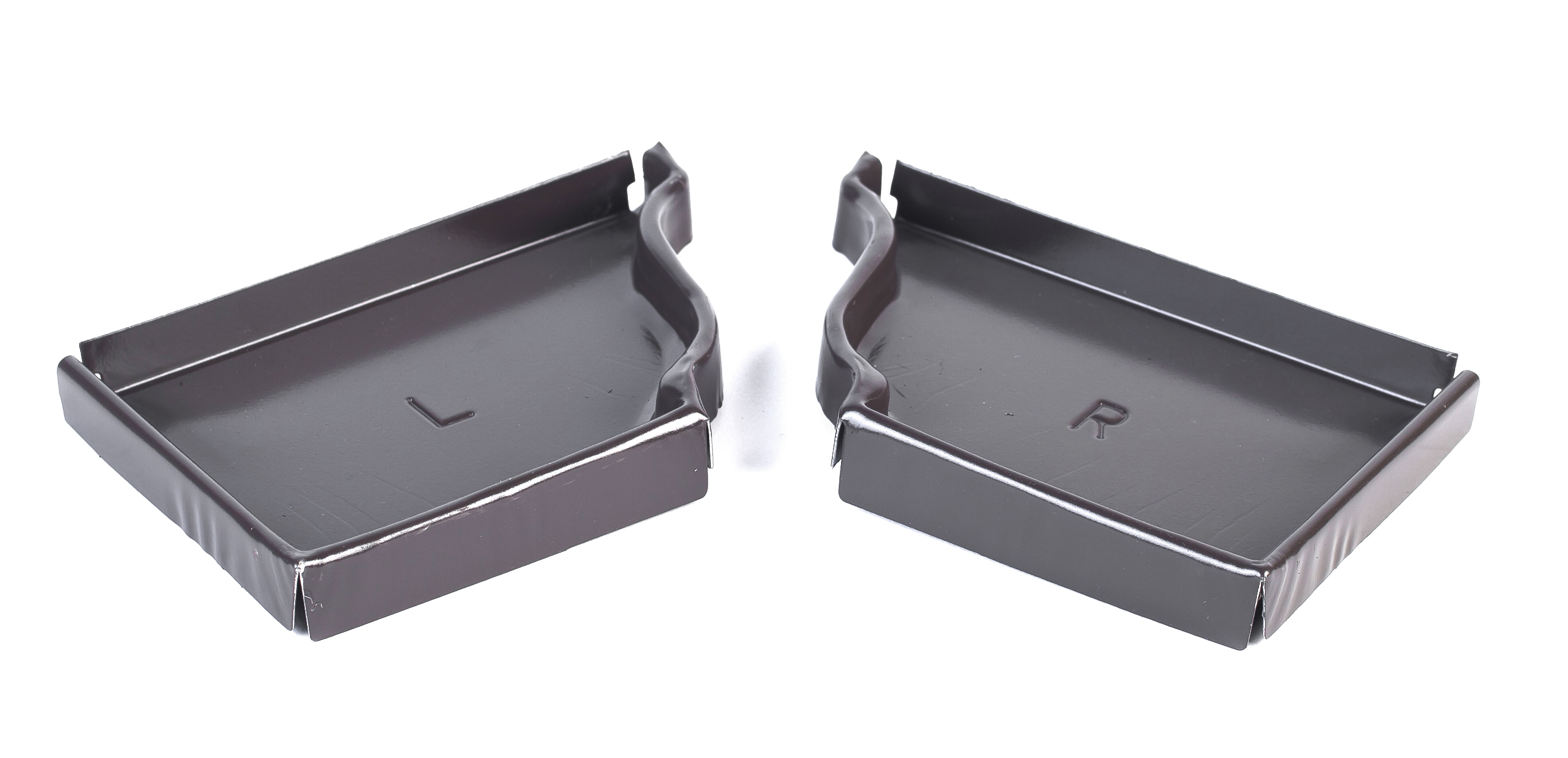

The ends of the gutter are right-side and left-side ones. The front piece is a joint part fastened to the bottom of the gutter for jointing the gutter and the pipe. Fastened with rivets

Funnels are made on special order on the basis of client’s drawings and wishes

Length of straight pipe: 2000mm
Length of pipe + mouth: 2500mm

Set of elbows: small elbow + big elbow
The horizontal extension of an uncut elbow is 700mm
In addition, small elbow bent sideward is available
